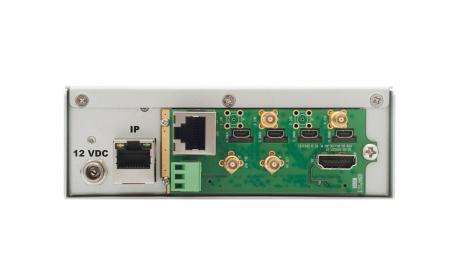

Apantac MiniQ-II 4 SDI Input Multiviewer
Product Description
Standalone or Cascadable 4 SDI Input Multiviewer
Key Features
- 4 auto-detect 3G/HD/SD-SDI, PAL/NTSC inputs
- Low power consumption - 15W
- Cascadable to allow more inputs
- Single frame processing delay
- Decode up to 16 embedded audio per SDI input
- Ethernet for configuration, dynamic labels & Tallies (TSL)
- Simultaneous HDMI and SDI outputs
- 2 GPI tallies per window
- 8 GPI contacts, can be configured for tally or ASCII protocol
- Borders can be turned on or off
- One 32 characters label per window
- Text and background colors have adjustable transparency
- Safe area markers
- Visual Alarm tags for audio and video presence
- Stereo analog audio monitoring output
- HDMI and SDI outputs have embedded stereo audio pair
- 3 year limited warranty
Product Code
Product Name
Add to Basket
Apantac MiniQ-II 4 SDI Input Multiviewer
MiniQ-ll
Standalone or Cascadable 4 SDI Input Multiviewer
