Apantac CRESCENT Mi-16 Multiviewers
Manufacturer
Produced In
Taiwan
Product Description
Cost-Effective 16x1, dual 8x1, 16x2 12G/3G/HD/SD-SDI Video Multiviewers
Key Features
- Low latency - single frame processing delay
- Low energy - only uses 75W of power
- Accepts 16 auto-detect 12G/3G/HD-SDI inputs
- Supports up to 16 2SI or 8 square division input signals
- Decodes up to 16 embedded audio per input
- Total of 64/128 audio meters
- 1 x HDMI 2.0 (UHD) output
- 1 x 12G-SDI and 1 x down converted 3G-SDI output
- Output resolution up to 3840x2160@60Hz
- Ethernet for configuration and external control
- Dynamic UMD/Label and Tallies (TSL)
- Standalone labels and 2 customizable logos
- 2 digital and 2 analog clocks can by synced with LTC or NTP
- 32 GPIs for tallies, count up/down triggers or preset recalls
- Borders can be turned on or off
- 2 sets of safe area markers per window
- Visual alarm tags for format, video/audio presence
- Audio monitoring outputs - stereo, AES, SDI or HDMI
- 1/2 RU with standard redundant power supply
- 3 year limited warranty
Product Code
Product Name
Add to Basket
Apantac CRESCENT Mi-16 Multiviewers
Mi-16-12G-UHD
Cost-Effective, 16x1 12G Video Multiviewer with HDMI 2.0 (UHD) output
Mi-16-UHD
Cost-Effective 16x1 Video Multiviewer with UHD HDMI 2.0 Output

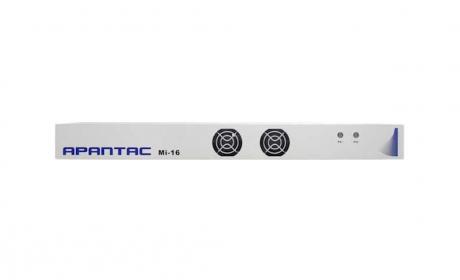

Mi-16
Multiviewer with 16 3G/HD/SD-SDI inputs with passive loop-outs and HDMI and SDI output

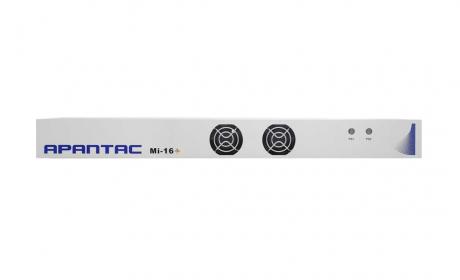

Mi-16+
Cost-Effective Dual 8x1 Video Multiviewer

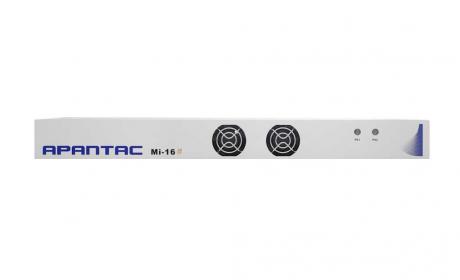

Mi-16#
Multiviewer with 16 3G/HD/SD-SDI inputs with dual outputs. Each input can be resized and duplicated up to 16 times and can be assigned to both outputs. Each independent output can display up to 16 windows.
