ADDERView AVS 1124 - Multi-Viewer
Product Description

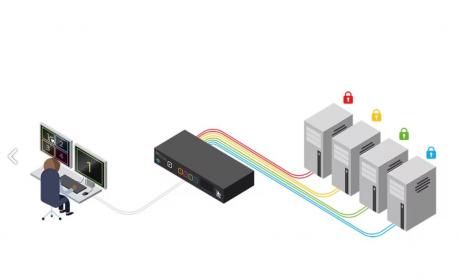

The ADDERView Secure multi-viewer switch is designed to give operators managing mission-critical systems, simultaneous real-time access of up to four computers from a single KVM workstation. Users can instantly take control of the target PC by simply moving the mouse between windows.
Key Features
- Video Performance: Up to UHD 4K video output resolution is generated so the HD input signal quality is preserved - even in tile window layout.
- Automatic Switching: Switch channels (KVM plus audio) easily by moving the mouse across the screen border while pressing the Ctrl key. This is a security feature to prevent accidental switching.
- Channel Identification: Reduce the chances of operator error by displaying a name for each channel and its security classification on the E-paper display. The color of the channel LED may also be configured to reflect the security classification.
- Flexible Screen Layout: Use preset window layouts, or move and resize windows, to create custom layouts. Dual output ports allow for extended or duplicated modes.
- No Shared RAM Between Channels: The keyboard and mouse processor is powered down and reset at each switchover to avoid shared RAM leakages. All data buffers are actively cleared once they have been used.
- Hardware Anti-Tampering: Holographic anti-tampering labels protect the product's enclosure, providing a clear visual indication if it has been opened or compromised.
- Restricted USB Function: The USB ports will only accept HID (Human Interface Devices), such as keyboards and mice. Other devices, such as USB storage drives, are actively prohibited.
- Audio Hold: Assign the audio port to a specific computer while switching the KVM to another computer. Useful when a user needs to listen to audio from one computer, while working on another.
- Uni-Directional Video: Computer video input interfaces are isolated through use of separate electronic components and power. This display is isolated by a dedicated, read-only, EDID emulation for each computer. Access to the monitor's EDID and MCCS commands are blocked.
- Uni-Directional USB and Audio: Uni-directional optical diodes ensure data paths travel in only one direction to prevent data leakage through shared peripherals. A uni-directional structure also protects against timing analysis or forced malfunction attacks.
- Non-Reprogrammable Firmware: Firmware is permanently stored in non-reprogrammable Read Only Memory (ROM) to prevent modification, and cannot be accessed by any port. If a critical failure is detected, the device is disabled and provides a clear visual indication to the user.
- Industry Recognized: NIAP PP 4.0 Certified and TAA Compliant
